Features

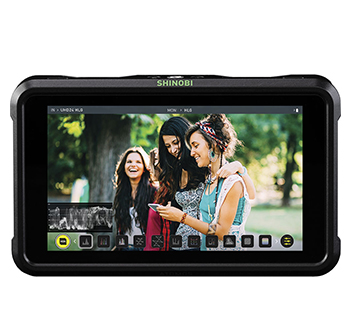

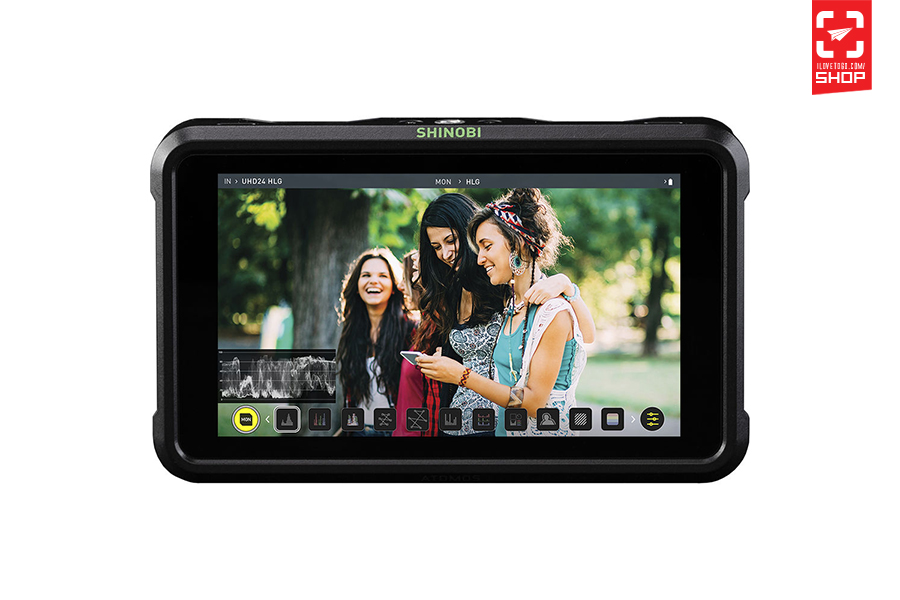

- 1920 x 1080 Touchscreen Display
- 3G-SDI & 4K HDMI Inputs
- Daylight-Viewable Monitor
- 1000 cd/m² Brightnes

Specifications
-Panel Type : IPS-Type LCD
-Display Size : 5.2"
-Screen Resolution : 1920 x 1080
-Aspect Ratio : 16:9
-Touchscreen : Yes
-Maximum Brightness : 1000 cd/m2
-Bit Depth / Color Support : 8-Bit+FRC (1.07 Billion Colors)
-Pixels Per Inch (ppi) : 427 ppi
-Color Gamut : 100% Rec. 709
-Real-Time LUT Monitoring : SDR
-Image Controls : Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

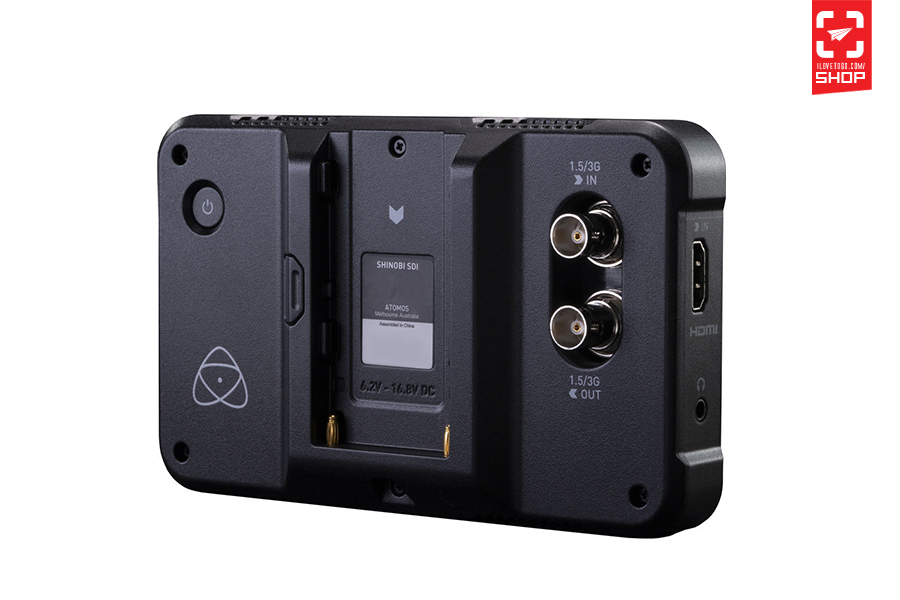

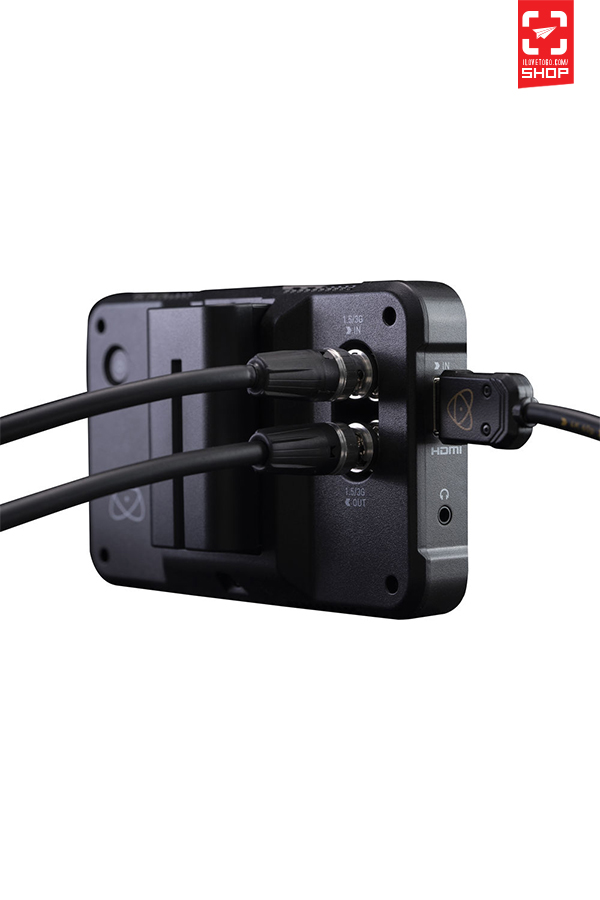

-I/O Video : 1 x BNC (3G-SDI) Input // 1 x HDMI Type A (HDMI 1.4) Input
-Embedded Audio : SDI 8-Channel // HDMI: 2-Channel
-Audio : 1 x 3.5 mm Headphone Output
-Built-In Speaker : None
-Power : 1 x Barrel Input
-Other I/O : None

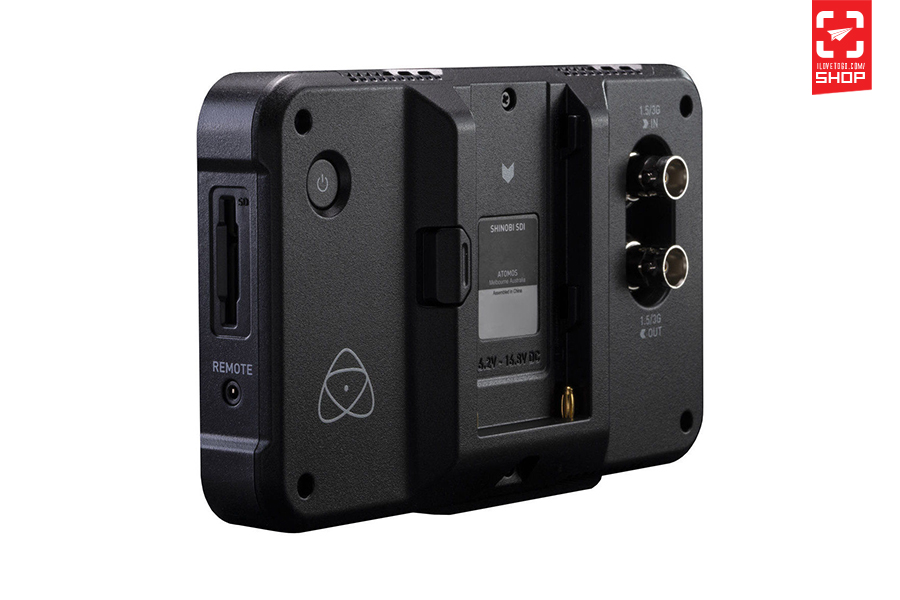

-Card Slot : 1 x SD
-Video Format : SDI (8/10-Bit 4:2:2) // DCI 2K: 59.94/50/29.97/25/24/23.98 // 1080p: // 59.94/50/29.97/25/24/23.98 // 1080i: 59.94/50 // 720p: 59.94/50 // HDMI (8/10-Bit 4:2:2) // DCI 4K: 29.97/25/24/23.98 // UHD 4K: 29.97/25/24/23.98 // 1080p: 59.94/50/29.97/25/24/23.98 // 1080i: 59.94/50 // 720p: 59.94/50
-DC Input Power : 6.2 to 16.8 VDC
-Battery Type : 1 x L-Series
-Power Consumption : 4 W (Typical) // 7 W (Maximum)
-Mounting : 2 x 1/4"-20 Female
-Operating Temperature : 104°F / 40°C (Recommended)
-Material of Construction : Polycarbonate
-Dimensions (W x H x D) : 151 x 91.5 x 31.5 mm
-Weight : 226 g
