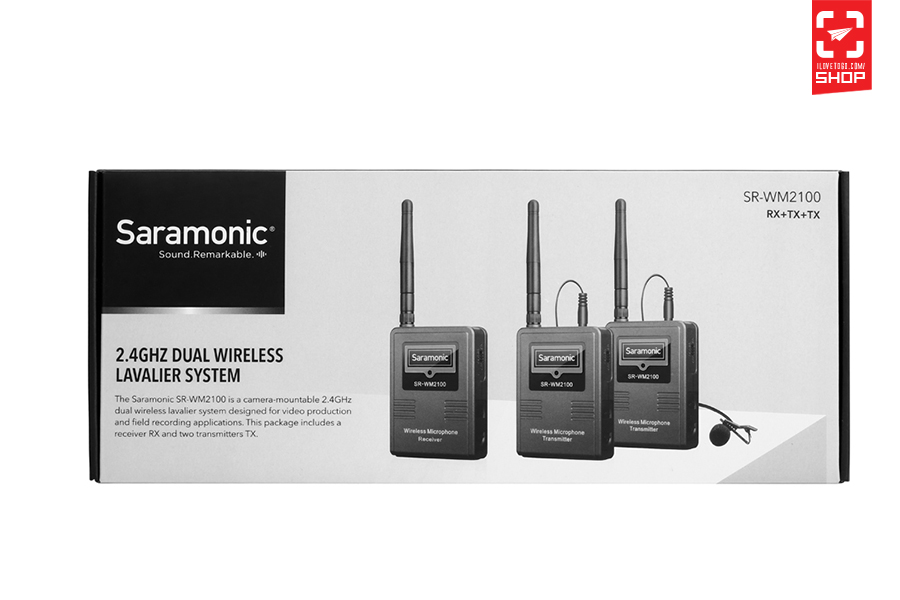

In The Box

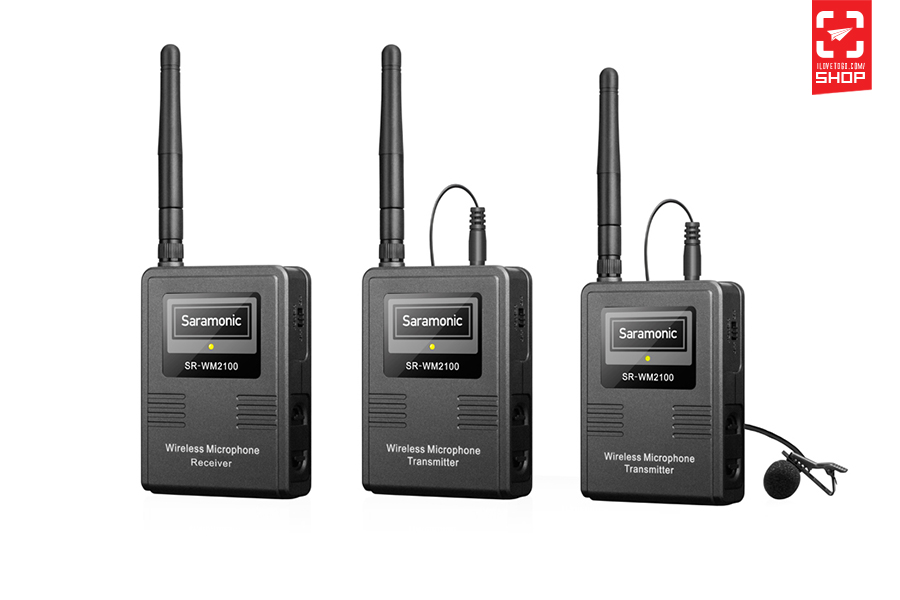

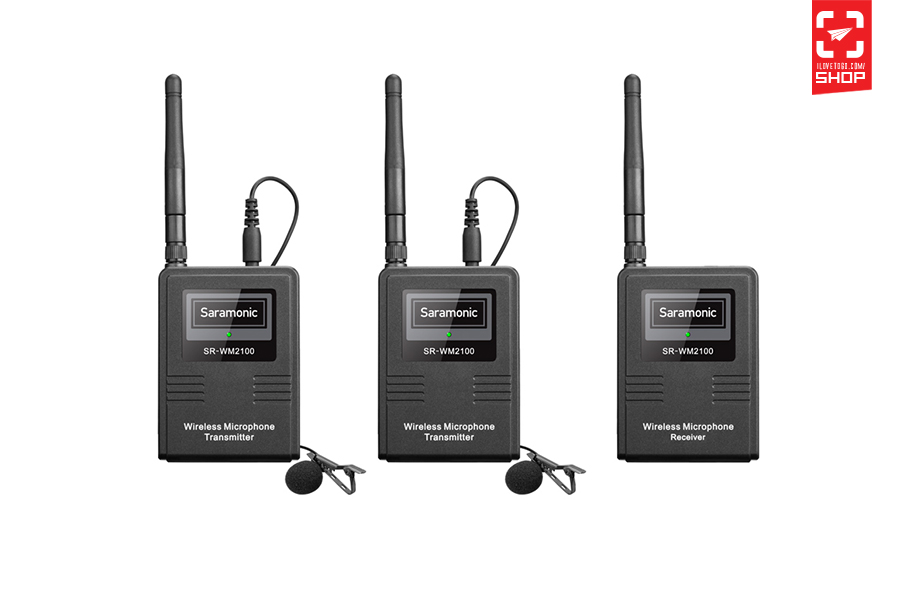

-Dual-Channel Receiver
-Shoemount Adapter
-2 x Bodypack Transmitters
-3 x Antennas
-2 x Omnidirectional Lavalier Mics
-2 x Alligator-Style Mic Clips
-2 x Foam Windscreens
-2 x Belt Clips

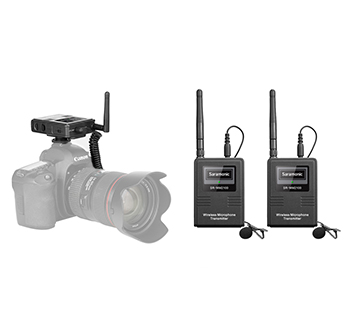

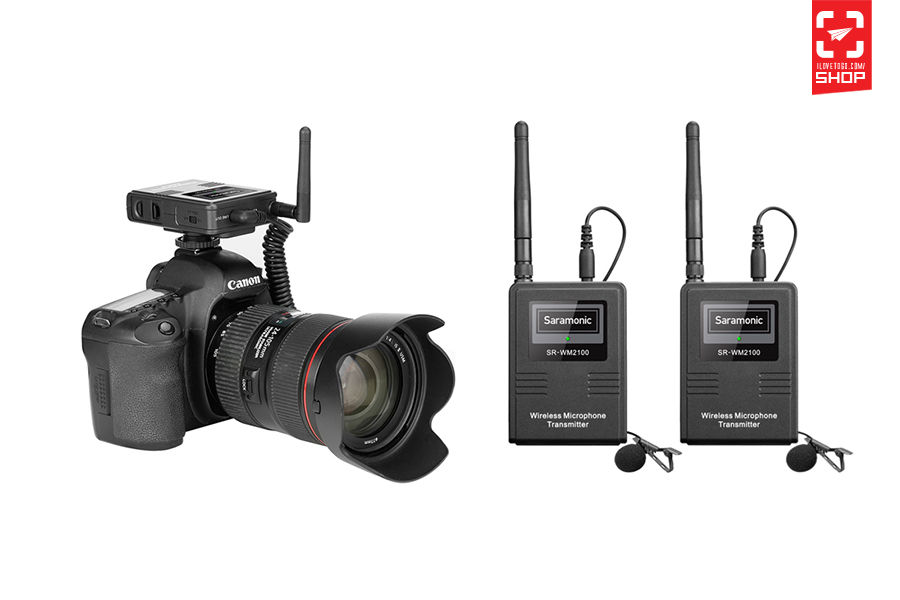

-3.5mm TRS Output Cable for Cameras

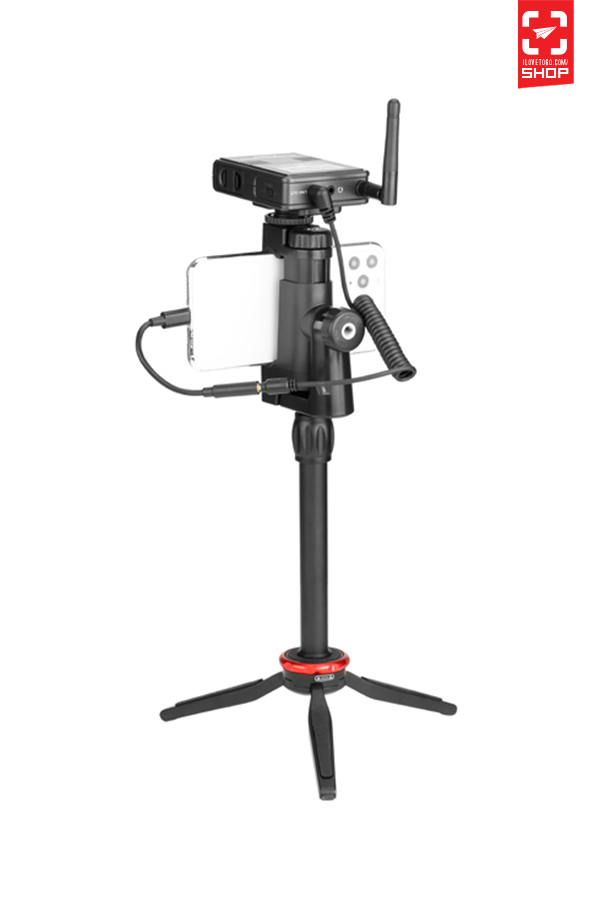

-3.5mm TRRS Output Cable for Mobile Devices
- Pairing Pin
Features
- For Interviews, Video, Vlog, Streaming
- 2 x Bodypack Transmitters
- 2 x Omnidirectional Lavalier Mics
- Dual-Channel Receiver with Gain Control
- 20 Hours on AA Batteries / 230' Range
Specifications
-
Wireless Transmission : Digital 2.4 GHz
-
Included Transmitters : 2 x Bodypack with Microphone
-
Diversity : Non-Diversity
-
RF Frequency Band : 2404 to 2476 MHz
-
RF Channel Scanning : Auto-Scan
-
Max Operating Range : 70 m (Line of Sight)
-
Max Systems per Setup : 9
-
Latency : <62 ms
-
Encryption : None
-
Modulation : GFSK

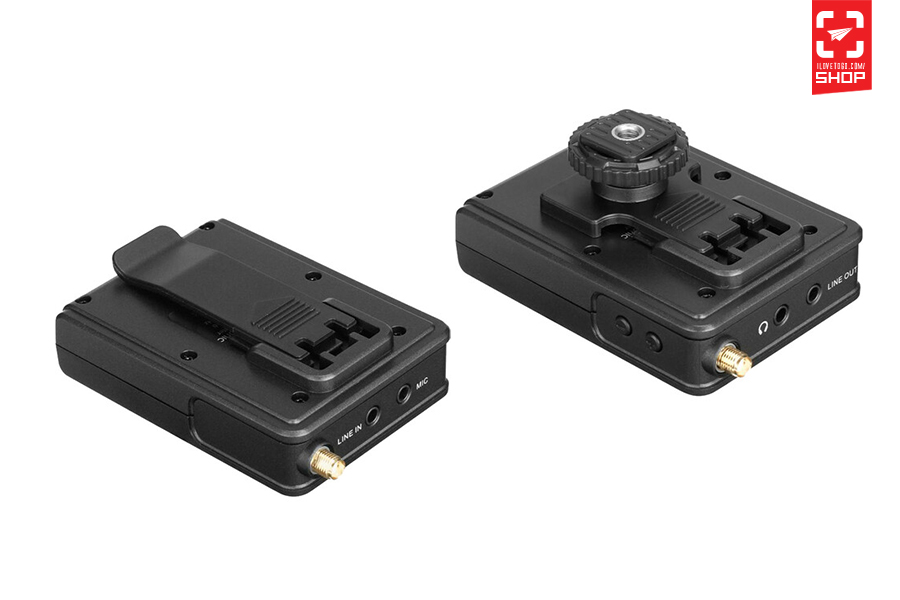

Receiver
-
Form Factor : Camera-Mount
-
Mounting Options : Shoe-Mount (with Included Hardware)
-
Antenna : 2 x External, Detachable
-
Number of Audio Channels : 2
-
Audio I/O : 1 x 3.5 mm TRS Female Unbalanced Output (Lockable) /// 1 x 3.5 mm TRS Female ///Unbalanced Headphone Output
-
Frequency Response : 35 Hz to 14 kHz ±3 dB
-
Power Requirements : Battery
-
Battery Type : 2 x AA (Not Included)
-
Approx. Battery Life : 20 Hours (Alkaline)
-
Display & Indicators : 1 x LED (Battery Status, Sync)
-
Operating Temperature : 0 to 50°C
-
Storage Temperature : -20 to 50°C
-
Dimensions : 62.5 x 85.7 x 26.4 mm
-
Weight : 68.5 g
Transmitter
-
Form Factor : Bodypack
-
RF Output Power : 5 mW
-
Audio I/O : 2 x 3.5 mm TRS Female Unbalanced Input
-
Audio Input Level : 0 dB (Mic Level) /// -30 to +60 dBV (Line Level)
-
Auto-Level Control : No
-
Sync Method : Proprietary
-
Antenna : 1 x External, Detachable
-
Power Requirements : Battery
-
Battery Type : 2 x AA (Not Included)
-
Approx. Battery Life : 20 Hours (Alkaline)
-
Display & Indicators : 1 x LED (Battery Status, Power, Signal Strength)
-
Housing : ABS
-
Operating Temperature : 0 to 50°C
-
Storage Temperature : -20 to 50°C
-
Dimensions : 62.5 x 85.7 x 26.4 cm
-
Weight : 68 g
Microphone
-
Form Factor : Lavalier
-
Sound Field : Mono
-
Polar Pattern : Omnidirectional
-
SNR : 75 dB
-
THD : < 0.05%
-
Output Connectors : 1 x 3.5 mm TRS Male
